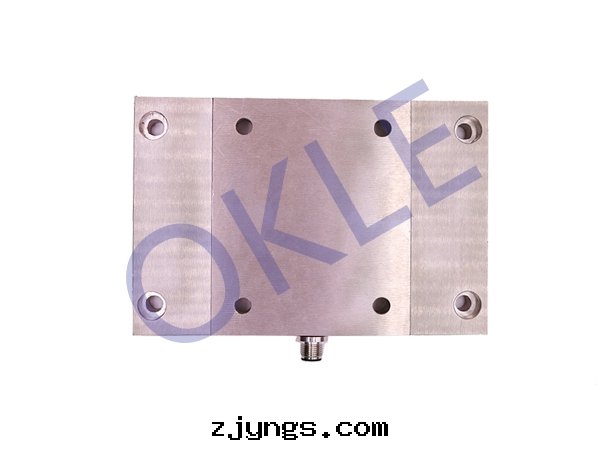

特點與用途/Features & Applications
●高度低、變形量小、动态響應頻率高
●不鏽鋼材料/合金鋼
●主要應用于壓機等各種及其他工業測試、測量及控制系統
●动态響應頻率高

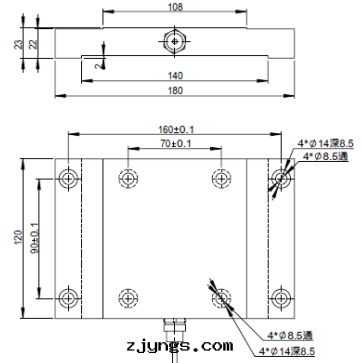

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 20T(尺寸/量程可定制) |
輸出靈敏度 | Rated output | 1.5±10%mV/V |
零點輸出 | Zero balance | ± 0.05mV/V |
非線性 | Non-linearity | 0.5%F.S. |
滞後 | Hysteresis | 0.5%F.S. |
重複性 | Repeatability | 0.5%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.5%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.5%F.S./10℃ |
輸入電阻 | Input impedance | 750±10Ω |
輸出電阻 | Output impedance | 700±5Ω |
绝緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5V |
最大激勵電壓 | Maximum excitation | 15V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | Φ5×4000mm |
TEDS可選 | ||
